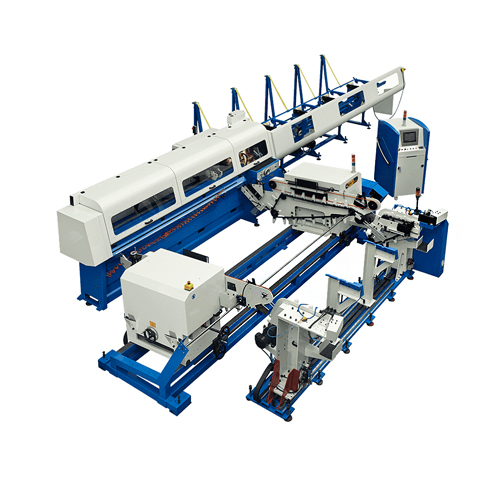

Features
Especially suitable for Cutting Automotive parts such as Impact Beams, Chassis and Cross Bar tubing
- Capacity up to OD 78 mm tubing. Sawing Lengths up to 2 – 4.5 meters
- High Tensile Tube Cutting (up to 120 kg/cm²)
- TCT Saw Blades are recommend
- High-Speed Sawing: the average sawing cycle times can be up to 4.5 seconds for most sizes.
Tube Cutting + Deburring or Chamfering + Length Measuring + Stacking
Length Measuring – LM-3000
- Length Measuring System with Programmable Interface and Touch Screen
- Length measuring tolerances of +/- 0.01mm.
- Motorized measuring length adjustment.
- Automatic separation against rejected parts
- Automatic Stoppage when rejected parts reach a set quantity
Stacking – STK-3000
- Suitable for Round Tubes and Profiles
- Standard with Safety System for Unloading of finished parts without production stoppage
1 or 2 optional length stoppers with Digital Length Readout. NC Length Stopper is available in optional

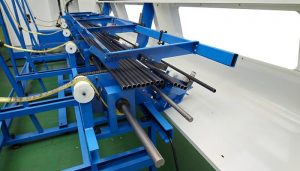

Standard with 6.5 meters Bundle Loading Magazine ( MB6 ), optional 8.5 meters ( MB8 ) and 12.5 meters ( MB12 )
- Standard with 6.5 m Bundle Loading Magazine (MB6), optional 8.5 m (MB8), and 12.5 m (MB12)
- Automatic separation of first and last cut vs. working pieces
- Safety covers for operational safety and minimizing noise levels
- 2 Loading Positions available: Left Side and Right Side Loading Magazines
