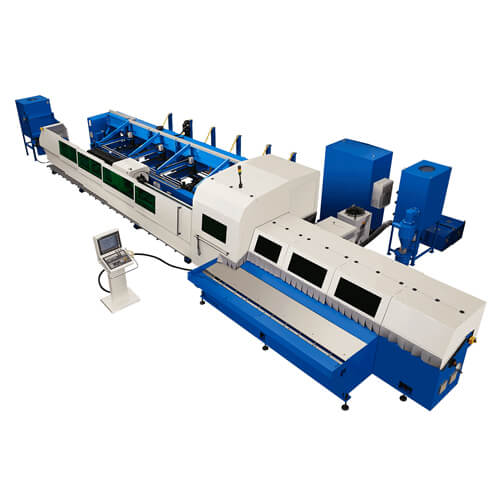

SLT-152-FIBER-3D<br>(3D Laser Cutting Line)<br>OD 152 mm

SLT-152-FIBER-3D
(3D Laser Cutting Line)
OD 152 mm

Products Description
3D Laser Cutting Line for Tubes and Profiles
Cutting capacity up to OD 152 mm
SOCO’s SLT-152-FIBER-3D can cut round, square, rectangular, oval, and 50+ different tube and profile shapes. This multipurpose tube laser has extensive cutting capabilities such as straight and angle laser cutting, hole making, notching, and marking. High performance in Mild Steel, Stainless Steel, and Aluminium materials.

  • 3D Laser Tube Cutting Technology
  • Tube Laser capacity up to OD 152 mm
  • 45-90-45 Degrees Cutting
  • 2 kW Laser Source (standard) / 3 kW / 4 kW (optional)
  • Tube cutting lengths up to 3M / 4.5 M / 6M
  • Max. Wall thickness up to 6 mm / 9 mm
  • Automatic Bundle Loading System with Material Alignment
  • Multi-Axis CNC Controls with Touch Screen Interface
  • SOCO CAD-CAM system for Tubes and Profiles with built-in Nesting
  • SOCO i2 (Intelligent Interface) 3D CNC Controls
  • Tube laser cutting for round, square, rectangle, and 50+ profile shapes
  • Enclosed Workstation for maximum safety
  • Automatic Distance Control
  • Laser Resonator + Cutting Head Cooling
  • Vacuum Chip extraction systems
  • Scanning and Measuring of material before cutting
  • Compensation after measuring of material

Categories: , Tags: , ,

Features

3D Fiber Laser Tube Cutting Technology

SLT-152-FIBER-3D cuts round, square, rectangular, oval, and 50+ different tube and profile shapes.
Typical Laser Cutting Processes:

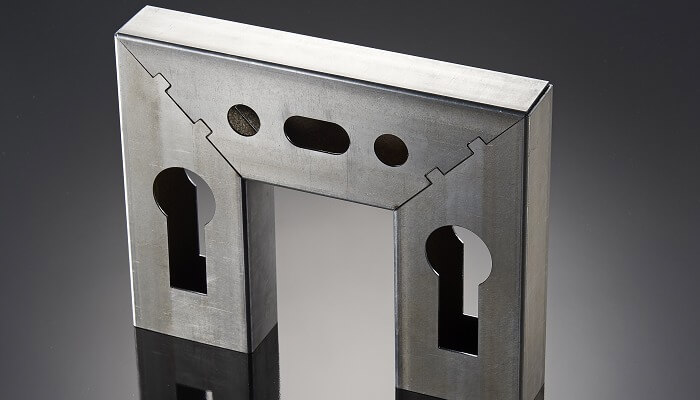

• Straight + Angle Cutting
• Slotting
• Marking
• Notching

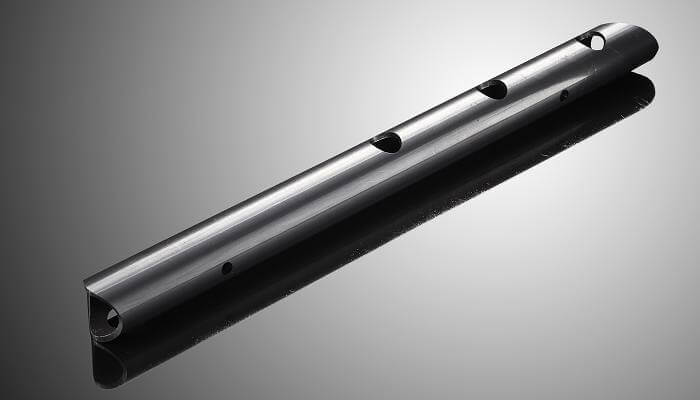

• Hole Making

Fiber Laser Tube Cutting Machine Working Processes

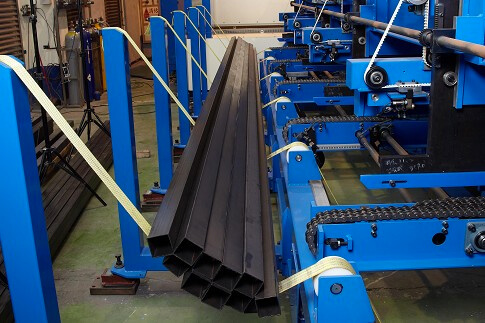

  • Automatic Tube Bundle Loading
  • Automatic Material Alignment
  • Automatic Feeding and Rotation

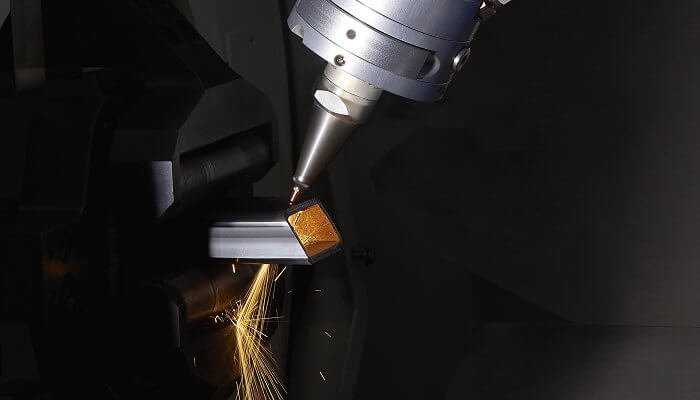

  • 3D Fiber Laser Tube Cutting
  • Unloading

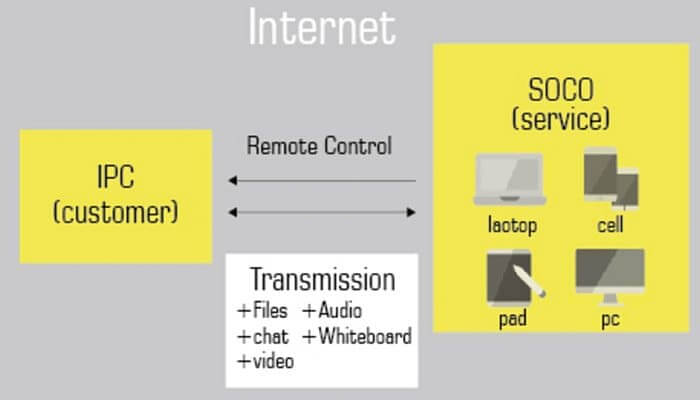

SOCO IRMS (Internet Remote Monitoring System)

  • True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer or laptop (Windows, iOS, or Android) from any location with Internet Access.
  • Actual Screen + Real-Time Access to laser tube cutting file, with full ability to see, edit and troubleshoot all user-created programs.
  • Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  • Maintenance Scheduling Systems:

– Advanced Table with Detailed Maintenance Items;
– Customizable Alarms for Daily, Weekly, Quarterly, and Yearly Items;
– Maintenance Records connected to User Login;

  • Built-in Self-diagnostics + Error messages display + I/O Tables with Descriptions
  • Webcam Ready for Video Monitoring (Optional)

Nesting

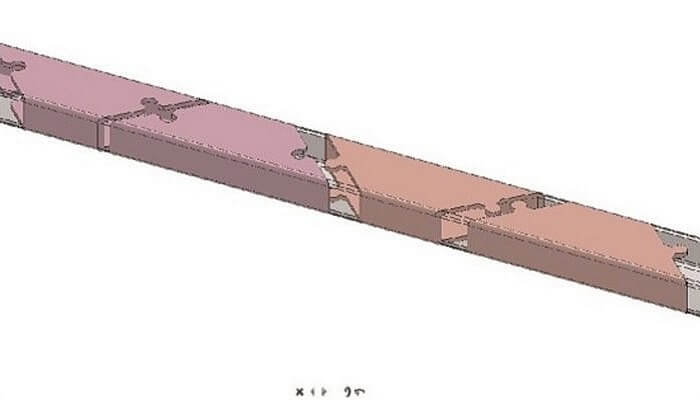

With Automatic Nesting, just select the parts and the i2 CAD-CAM will recommend the optimal cutting path for material utilization.  With Manual Nesting, it is further possible to drag, rotate and mirror parts with the click of a mouse.

Built-in library for parts design and assembly processes

Seam Detector for Tubes and Profiles (Optional)

Video

Technical Data

Model Cutting Capacity (mm) Axis Laser Source (Standard) Learn More
SLT-152-FIBER-3D-6A OD 20 ~ 152 6 2kW Inquiry
SLT-152-FIBER-3D-10A OD 20 ~ 152 10 2kW Inquiry
