Tube Chamfering + Measuring

Products Description

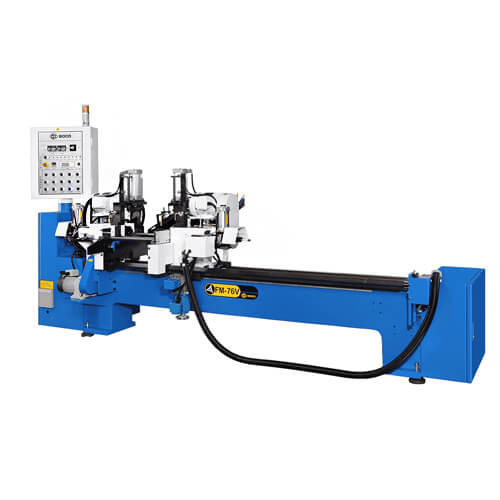

SOCO FM Series for Chamfering and Length Measuring can chamfer and measure both ends of a tube at the same time, with a maximum length of 3,000 mm and length tolerance up to +-0.02 mm. This series gives exceptional results in clean and even chamfer on both ends of the tube, with chamfering both the inside and the outside of the material.

With an optional BTM (Bundle Loading Magazine), the machines offer completely automatic loading, feeding, chamfering, and length-measuring processes.

Categories: >> Chamfering + Measuring, TUBE END FINISHING Tags: Tube End Finishing, Tube Chamfering + Measuring

Features

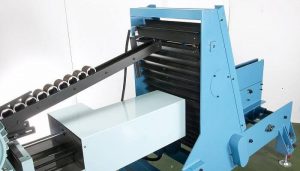

Automation

Fully automatic chamfering and Length Measuring system, with 2 types of loading magazine:
Rack – Sliding Magazine ( Standard )
BTM – Bundle Loading Magazine (Optional )
External and internal chamfering facing with length measuring in 1 process for both sides of the tube, with optional radius (round) chamfering
Optional motorized length adjusting and RPM speed inverter

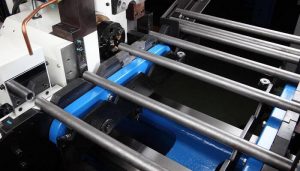

Chamfering + Length Measuring
With the SOCO FM series for Chamfering + Length Measuring, it is possible to simultaneously chamfer both ends of a tube, with up to 3000 mm in working length, and measure their lengths with tolerances as low as +- 0.02 mm.

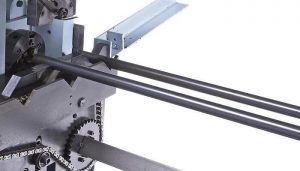

Ability to inside + outside ( IO ) chamfer as deep as 15 mm or angles as small as 15 degrees

Inside + Outside Chamfering
Facing
Centering
Deep Chamfering
Radius Chamfering
Length Measuring

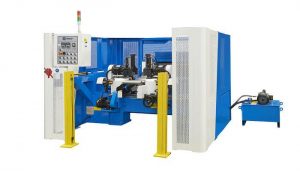

CE Safety Cover

Video

Technical Data

Model	Working Length (mm)	Working Capacity (mm)	Loading Magazine	Interested
FM-76V	250 ~ 3000	OD 16 ~ 76	Rack (Standard) / BTM (Optional)	Inquiry
FM-52	150 ~ 2000	OD 9 ~ 40	Rack (Standard) / BTM (Optional)	Inquiry
